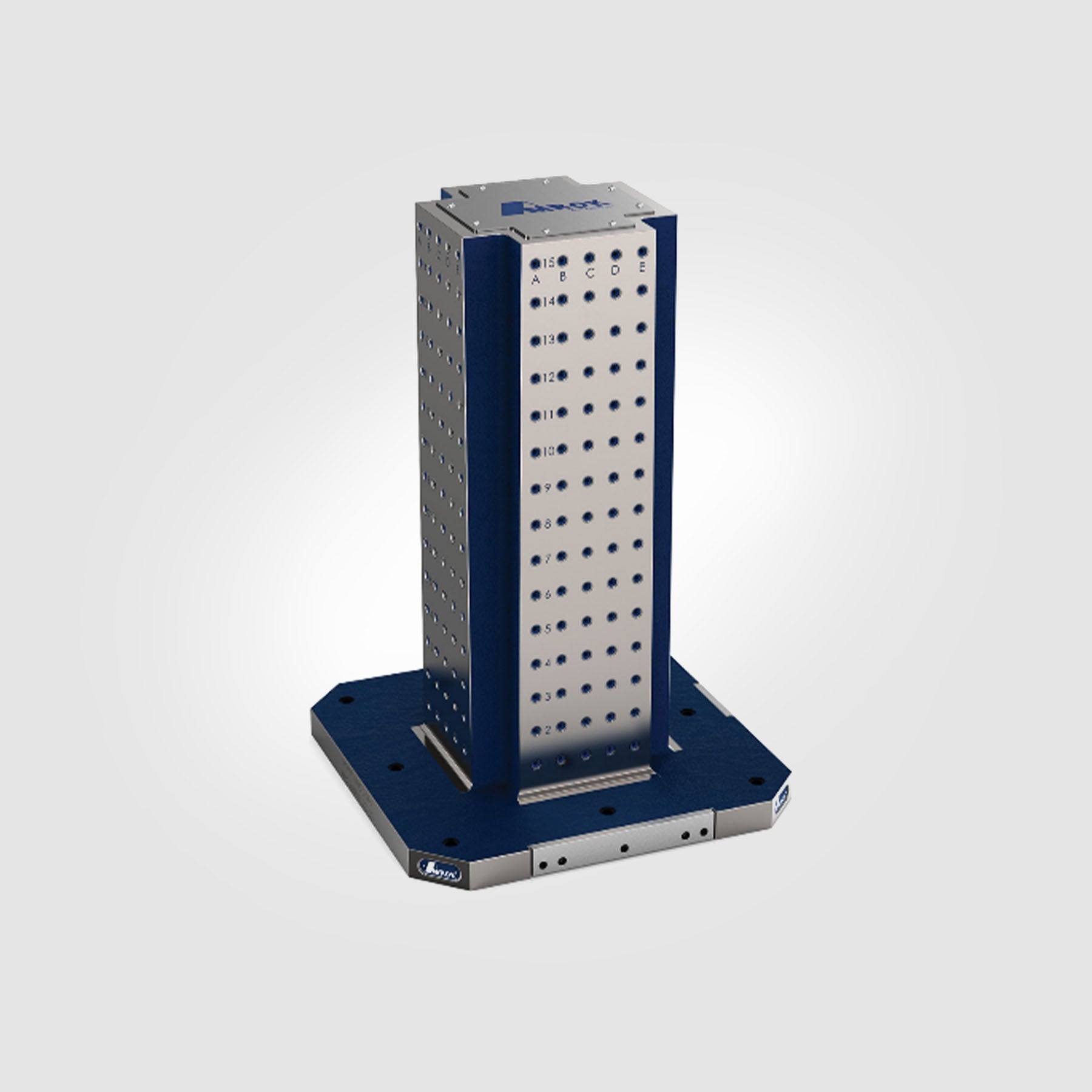

AMROK® tombstones and grid plates are designed to hold the industry’s highest tolerances for flatness, parallelism, perpendicularity, surface finish, and hole location. All tombstones and grid plates are built, tested for precision, then inspected using Advanced Machine & Engineering’s in-house Coordinate Measuring Machine (CMM). Quality workholding for your toughest jobs!
Product Details
- Edge locating (+/- .002 from milled edge to centerline)
- Includes lift holes for maneuverability
- Industry standard 2″ grid pattern with alphanumeric engraving for flexibility in fixturing setups
- 1⁄2″-13 grid system offering hardened, threaded inserts and precision bushings
- Hardened, threaded inserts allow for clamping in every hole
- Quick and easy replicability
- Hardened, precision bushings are accurately located to ensure easy locating
- High wear resistance
- Hole plugs included to prevent chip build-up in vacant holes
- Cast Iron, Class # 35
#AMRK20forHC400II
Technical Data
- Face Width: 4 in +/-.002
- Overall Width: 10 in +/-.002
- Height: 20 in
- Base: 400 mm
- Mounting holes for DN Solutions HC 400 II
Country of Origin: United States of America.
#AMRK26forNHP4000
Technical Data
- Face Width: 4 in +/-.002
- Overall Width: 10 in +/-.002
- Height: 26 in
- Base: 400 mm
- Mounting holes for DN Solutions NHP 4000
Country of Origin: United States of America.
#AMRK28forNHP5000
Technical Data
- Face Width: 6 in +/-.002
- Overall Width: 12 in +/-.002
- Height: 28 in
- Base: 500 mm
- Mounting holes for DN Solutions NHP 5000
Country of Origin: United States of America.
#AMRK28forNHP5500
Technical Data
- Face Width: 6 in +/-.002
- Overall Width: 12 in +/-.002
- Height: 28 in
- Base: 500 mm
- Mounting holes for DN Solutions NHP 5500
Country of Origin: United States of America.
#AMRK28forNHM5000
Technical Data
- Face Width: 6 in +/-.002
- Overall Width: 12 in +/-.002
- Height: 28 in
- Base: 500 mm
- Mounting holes for DN Solutions NHM 5000
Country of Origin: United States of America.
#AMRK36forNHP6300
Technical Data
- Face Width: 8 in +/-.002
- Overall Width: 18 in +/-.002
- Height: 36 in
- Base: 630 mm
- Mounting holes for DN Solutions NHP 6300
Country of Origin: United States of America.
#AMRK32forNHM6300
Technical Data
- Face Width: 8 in +/-.002
- Overall Width: 18 in +/-.002
- Height: 36 in
- Base: 630 mm
- Mounting holes for DN Solutions NHM 6300
Country of Origin: United States of America.
#AMRK40forNHM8000
Technical Data
- Face Width: 10 in +/-.002
- Overall Width: 22 in +/-.002
- Height: 40 in
- Base: 800 mm
- Mounting holes for DN Solutions NHM 8000
Country of Origin: United States of America.
#AMRK40forNHP8000
Technical Data
- Face Width: 10 in +/-.002
- Overall Width: 22 in +/-.002
- Height: 40 in
- Base: 800 mm
- Mounting holes for DN Solutions NHP 8000
Country of Origin: United States of America.
