PLEASE NOTE: Shipping costs calculated after purchase and will be coordinated with an AMROK Guide.

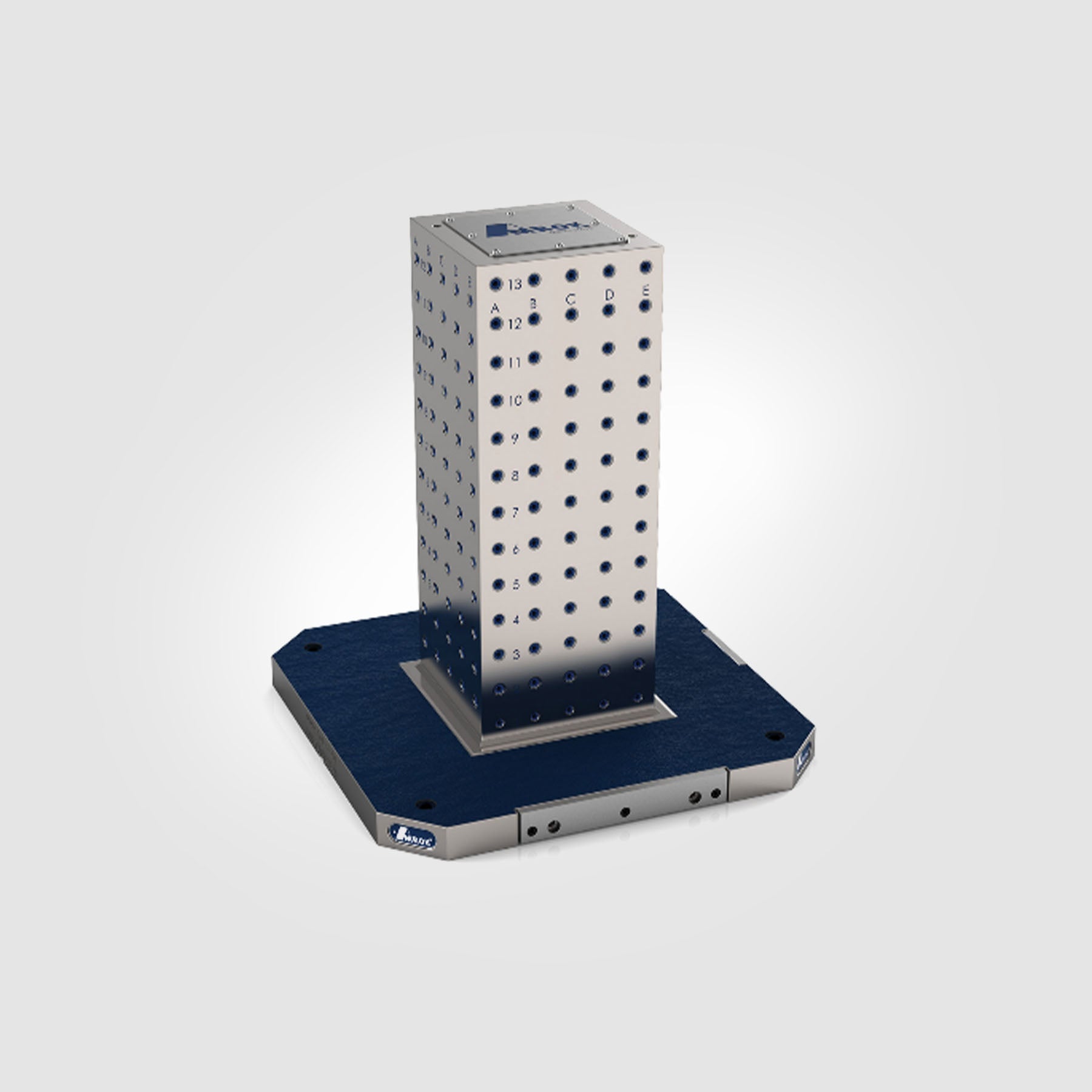

AMROK® tombstones and grid plates are designed to hold the industry’s highest tolerances for flatness, parallelism, perpendicularity, surface finish, and hole location. All tombstones and grid plates are built, tested for precision, then inspected using Advanced Machine & Engineering’s in-house Coordinate Measuring Machine (CMM). Quality workholding for your toughest jobs!

Product Details

• Edge locating (+/- .002 from milled edge to centerline)
• Includes lift holes for maneuverability
• Industry standard 2″” grid pattern with alphanumeric engraving for flexibility in fixturing setups
• 1⁄2″”-13 grid system offering hardened, threaded inserts and precision bushings
• Hardened, threaded inserts allow for clamping in every hole
• Quick and easy replicability
• Hardened, precision bushings are accurately located to ensure easy locating
• High wear resistance
• Hole plugs included to prevent chip build-up in vacant holes
• Cast Iron, Class # 35

#AMRC22forHC400II

Technical Data

• Width: 8 in +/-.002
• Thickness: 8 in +/-.002
• Height: 22 in
• Base: 400 mm
• Mounting holes for DN Solutions HC 400 II

Country of Origin: United States of America.

#AMRC28forNHP4000

Technical Data

• Width: 8 in +/-.002
• Thickness: 8 in +/-.002
• Height: 28 in
• Base: 400 mm
• Mounting holes for DN Solutions NHP 4000

Country of Origin: United States of America.

#AMRC28forNHP5000

Technical Data

• Width: 12 in +/-.002
• Thickness: 12 in +/-.002
• Height: 28 in
• Base: 500 mm
• Mounting holes for DN Solutions NHP 5000

Country of Origin: United States of America.

#AMRC28forNHP5500

Technical Data

• Width: 12 in +/-.002
• Thickness: 12 in +/-.002
• Height: 28 in
• Base: 500 mm
• Mounting holes for DN Solutions NHP 5500

Country of Origin: United States of America.

#AMRC28forNHM5000

Technical Data

• Width: 12 in +/-.002
• Thickness: 12 in +/-.002
• Height: 28 in
• Base: 500 mm
• Mounting holes for DN Solutions NHM 5000

Country of Origin: United States of America.

#AMRC36forNHP6300

Technical Data

• Width: 12 in +/-.002
• Thickness: 12 in +/-.002
• Height: 36 in
• Base: 630 mm
• Mounting holes for DN Solutions NHP 6300

Country of Origin: United States of America.

#AMRC36forNHM6300

Technical Data

• Width: 12 in +/-.002
• Thickness: 12 in +/-.002
• Height: 36 in
• Base: 630 mm
• Mounting holes for DN Solutions NHM 6300

Country of Origin: United States of America.

#AMRC32forNHM8000

Technical Data

• Width: 12 in +/-.002
• Thickness: 12 in +/-.002
• Height: 32 in
• Base: 800 mm
• Mounting holes for DN Solutions NHM 8000

Country of Origin: United States of America.

#AMRC32forNHP8000

Technical Data

• Width: 12 in +/-.002
• Thickness: 12 in +/-.002
• Height: 32 in
• Base: 800 mm
• Mounting holes for DN Solutions NHP 8000

Country of Origin: United States of America.
