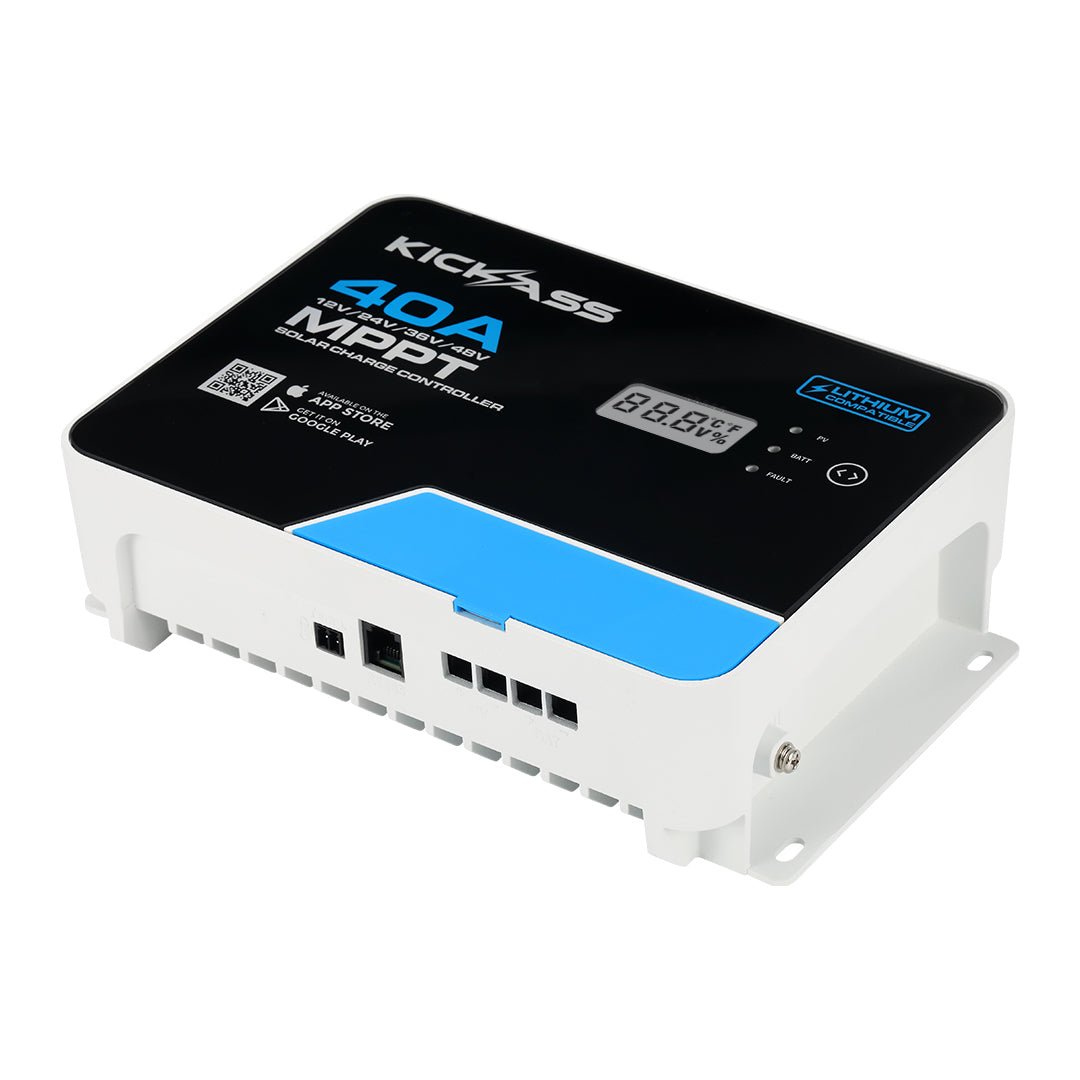

KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controller Amazing Pice

KickAss 40A 12V/24V/36V/48V MPPT Solar Charge Controllers Features Overview

The KickAss 40A 12/24V MPPT Solar Controller uses the latest dual-peak and multi-peak tracking technology available today.

Highly Efficient MPPT

With a tracking efficiency of at least 99.5% and a peak conversion efficiency of 98%, you can be confident that your dual battery system is receiving the optimal charge.

The KickAss 12/24V MPPT Solar Controller series accurately identifies and tracks multiple power points, and includes built-in self-diagnostic technology to help prevent damage from installation and system failures.

Battery Temperature Sensor

Equipped with a temperature sensing probe, the KickAss 12/24V MPPT Solar Controller can limit the current output to your battery, preventing overheating and overcharging if a fault occurs with the connected battery.

LCD Display

The easy-to-read LCD display shows all crucial charging information dynamically (note that the LCD is not backlit).

Pair with

• KickAss Remote Control LCD Display For MPPT Controllers
• KickAss Bluetooth MPPT Module

These devices allow for convenient viewing of your controller in tight spaces and can connect to the KA Solar App on your smartphone for added convenience.

**Please Note: this unit is not a full battery management system, it is simply an MPPT with a load output**

Key features

• 99.5% tracking efficiency
• 98% peak conversion efficiency
• Built-in self-diagnostic technology
• LCD easy read display
• LED indicators for charging, battery, load, and faults
• RJ12 communication interface
• Temperature sensing probe
• Lithium compatible

Protective features

• Input power limit protection
• Battery reverse polarity protection
• Solar input high voltage protection
• Load overpower protection
• Load short circuit protection
• Reverse charge protection
• Over temperature protection for internal heat protection of the MPPT unit
• Over temperature protection for your battery (temperature sensing probe must be attached)

Do not get the controller wet, as it is not waterproof and will be damaged by moisture.

This device is a charge controller, not a complete battery management system. It is designed to power small accessories like LED lights. However, the load output is dependent on the solar input (daylight and darkness) and does not provide a consistent power supply suitable for running appliances like a fridge or freezer. Therefore, we advise against connecting electronics that need stable and reliable power directly to the MPPT Solar Controller. Instead, all accessories should be connected directly to your battery bank using appropriately fused circuits.
