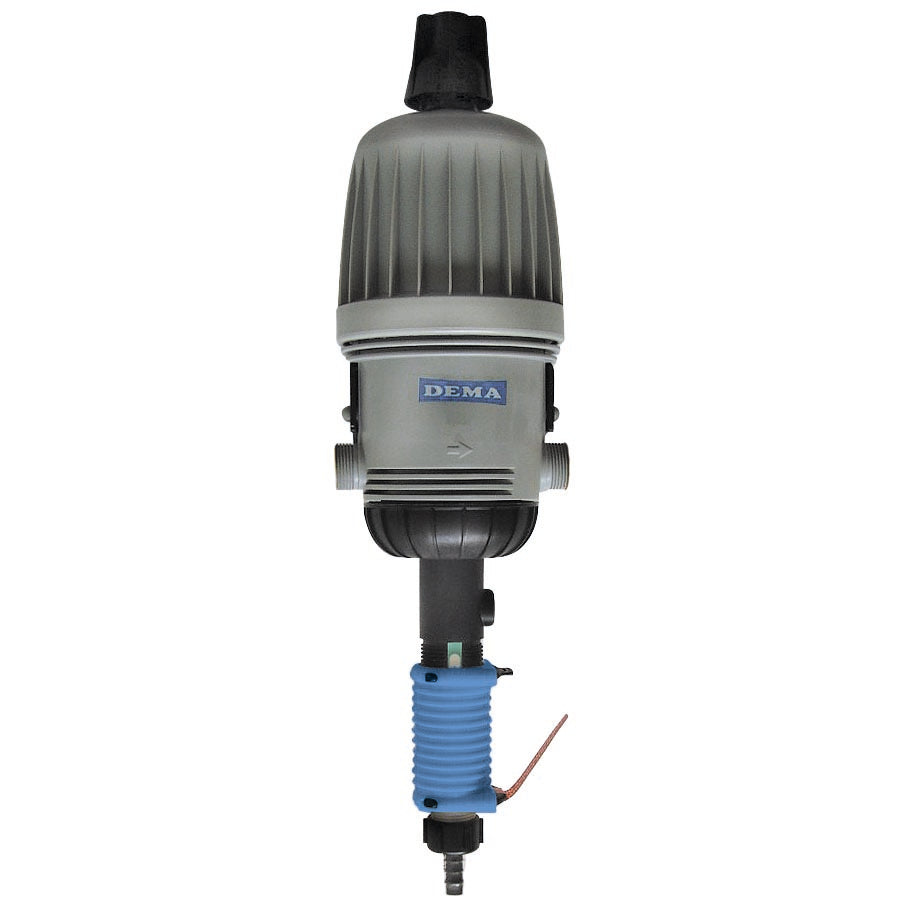

The MixRite 500 Series Water Driven Injectors are designed to operate from .5 to 11 gpm (1.8-41 L per min.) The 500 series is available as a “CW” model with seals and components for mildly aggressive additives, and a PVDF model for the most aggressive additives.
MixRite Water Driven Injectors are water powered proportioning pumps that require no electricity and deliver accurate dispensing across varying water pressures and water flows. These units are ideally suited for in-line injection.
MixRite injectors can provide in-line addition of fertilizer, insecticides and pesticides for agriculture and irrigation, dosing of livestock vitamins into the water supply plus many more uses. Includes suction tube with foot strainer and hose clamp and a replacement seal kit.
Specifications
| Model | Induction Rates | Chemical Shut-off | Available Models |
|---|---|---|---|
| 566 | 100/1 (Fixed 1%) | No | AG |
| 568 | 12.5/1 (Fixed .8%) | No | AG |
| 569 | 1000/1 to 115/1 (.1% to .9%) | Yes | CW, PVDF |
| 571 | 384/1 to 50/1 (.3% to 2%) | Yes | CW |
| 573 | 250/1 to 25/1 (.4% to 4%) | Yes | CW |
Additional Information
MixRite 500 Series User Guide (PDF)
